Protect-Fast™: Expander

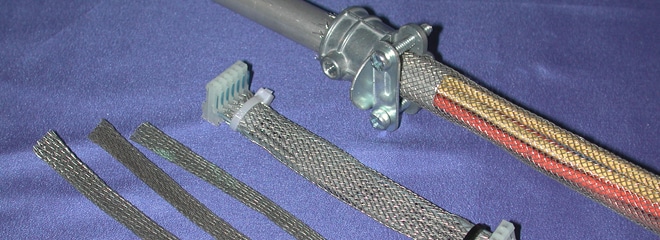

Protect-Fast: Shield Expander

Device Technologies Free Sample Kit
Wiring-Sleeve-Expander-W1

Wiring Sleeve Expander

Wiring-Sleeve-Expander-in-use-W1

Wiring Sleeve Expander in Use

Protect-Fast Shield Expander provides excellent flexibility and abrasion resistance, as well as EMI Shielding protection for wire and cable organizing within a variety of applications including telecommunications, automotive, and data centers. Its open woven structure expands to 3 times its initial resting diameter

Protect-Fast Features

  • Superior flexibility
  • Excellent abrasion resistance
  • Wire and cable organizing
  • Material: Tin (Sn) plated Copper (Cu) braid
  • Melt Temperature Rating : 449° F (232° C )
  • Expands to 3x initial diameter- Elongation: 20%
  • RoHS Compliant and Halogen free

Protect-Fast Applications

  • Telecommunications
  • Transportation
  • Automotive
  • Heating applications
  • Data Centers
  • Generators
Shield Expander
MaterialTin (Sn) plated Copper (Cu) braid
Service Temperature °C -70° ~ 125°
Melt Temperature Rating449° F (232° C )
Surface Resistivity (Ω/sq.)0.02
FlammabilityNon-Flammable
Nominal SizePart NumberExpansion RangeShop Spool Info
Put Up/Feet
Bulk Spool
Put Up/Feet
MinMax
1/8"A0FR1/16"1/4"164328
3/8"A2FR1/4"1/2"164328
1/2"A3FR3/8"3/4"164328
3/4"A4FR1/2"1"164328
1"A5FR3/4"1 1/4"164328
1 1/4"A7FR1"1 1/2"164328
1 1/2"A7FR1 1/4"1 3/4"164328
