Protect-Fast: Braided Sleeving

Protect-Fast™: Braided Sleeving Aerospace

Protect-Fast™: Braided Sleeving Aerospace

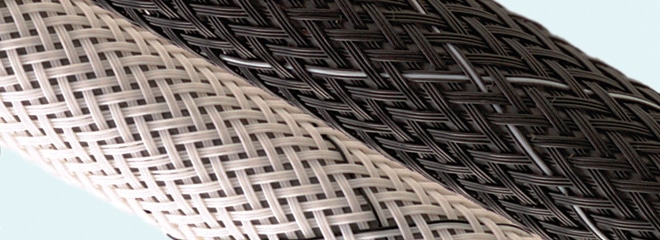

Protect-Fast Braided Sleeving is an efficient FAR 25 solution allowing for easy installation of wires or bundles of cable. It is a tough, lightweight method used to contain and protect cable assemblies, hoses and wire harnesses from abrasion and cutting.

  • The PFR material is MIL-202 approved, gasoline resistant, and has a temperature rating from -70ºC to 125ºC (-94ºF to 257ºF)
  • The ECM material is approved with low outgassing, resistant to strong acids and gasoline, and has a temperature rating from -75ºC to 150ºC (-103ºF to 302ºF)
  • The PFW material is solvent resistant and has a temperature rating from -75ºC to 125ºC (-103ºF to 257ºF)

Protect-Fast Features

  • Flammability Rating FAR 25 UL VW-1
  • Expansion 150% Sleeve 25% Overlap Wrap
  • Wide Operating Temperature RangesMelt Temperature 285ºC
  • Corrosion Resistance High Chemical Resistance
  • High and Medium Abrasion Resistances
  • Recommended Cutting: Hot Knife
  • Low and Medium Outgassing
