 Spring-Fast Grommet Edging:  BT Series

The BT Series has a steel substrate encapsulated with lubricious fusion bonded nylon for superior abrasion
and chemical resistance and adds a sacrificial polymer cushion for even greater wire and cable protection.
BT is the T series plus a sacrificial cushion.

Key Benefits

  • Superior performance: encapsulated stainless steel core: outperforms plastic grommets.
  • Snap on installation lowers costs 49% vs. grommets with glue. Watch the 4 min. video below.
  • Improves efficiency 9.5x – due to fewer steps in workflow.

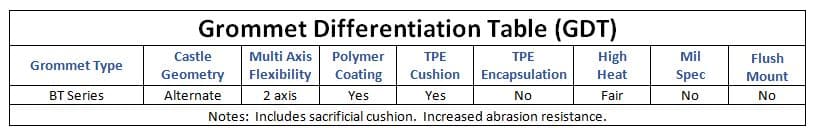

Grommet Differentiation Table (GDT)

Grommet SeriesCastle GeometryFlexibilityPolymer CoatingExtra Cushion100% TPE EncapsulationHigh HeatMil SpecApplication MethodNotes
BTAlternating2 axisYesYes No185°F/85°CNoSnap on/No adhesiveNo cure time delay
FOR REFERENCE
MS21266 Nylon Opposing2 axisNAYes NA257°F/125°CYesAdhesive Required8-24hr cure time delay
MS21266 Teflon Opposing2 axisNAYes NA527°F/275°CYesAdhesive Required8-24hr cure time delay

Applications

  • General commercial use to prevent abrasion
  • Straight edges
  • Small radii inside or outside corners

Features

The old nylon grommet with glue is old, inefficient and costly.  DTi has a better way.

  • Nylon encapsulated stainless steel substrate with a  sacrificial cushion for added protection
  • Snaps on fast with finger pressure
  • Installs continuously with two axis conformity, including right angled corners
  • Self locking with strong retention – no adhesives
  • Simpler install: no adhesive, fixturing, curing, clean up or OSHA concerns
  • Maintenance is far easier due to its ease of application, use and removal
  • Customization available (lengths, colors and print)

Key Specifications

  • Resistant to hydrocarbons, immersion, salt spray, shock and vibration.
  • Operating Temperature Heat continuous to -40°F to 185°F (-40°C to 85°C)
  • UL94 V-0 Flammability Rating
  • High Shock and Vibration Resistance to rms G 41.7

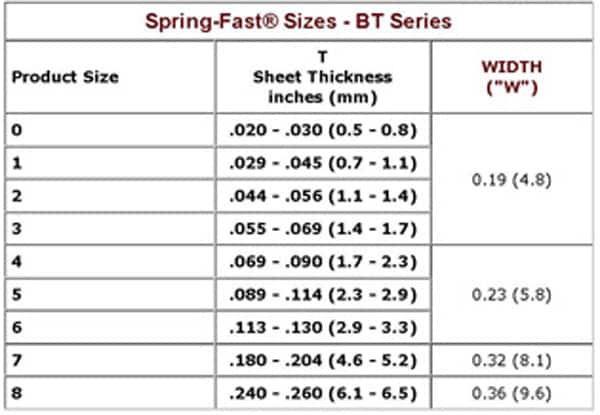

  • 8 sizes to fit edge thicknesses: 0.02” to 0.26” (0.5 mm to 6.6 mm)
  • Available in custom cut lengths & factory pre-cut reels of 25 ft. (7.6 m), 100 ft. (30.5 m) or 500 ft. (152 m)
  • Tools available: Installation roller, full by-pass shears, castle removal, measuring scale,
    go-no go sizing gauge, cutter cart
