Seal-Fast™: Edge Seal
Device Technologies Free Sample Kit

   Seal-Fast:  Edge Seal

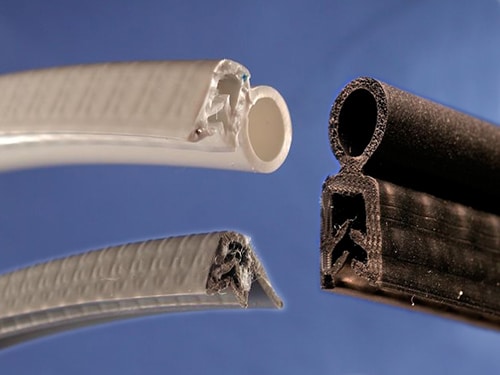

Seal-Fast edge seals snap on quickly and securely for an effective seal solution.

Key Benefits

  • A cleaner, better, faster way to protect your equipment from environmental conditions; dust, low and high temperatures and moisture.
  • 100’s of COTS variations.
  • US made and USA Content compliant.

Available in a variety of materials: Silicone, EPDM or PVC/EPDM gasket with a steel or stainless steel substrate.

Applications

  • Automotive
  • Railway and Aerospace
  • Food Service (FDA White)
  • Telecommunication
  • Construction, Mining and Forestry
  • Boating
  • Golf Carts
  • Helmets

Key Features

  • Excellent grip strength, offering custom insertion/extraction capabilities
  • Excellent resistance to abrasion, water absorption, low and high temperatures
  • Optimized compression set and load deflections available to meet specific requirements
  • Indoor or outdoor use
  • Fast assembly without the use of adhesives, rivets or screws
  • Multi-axis flexibility for small inside and outside radius corners
  • Panel thickness range:  .029 (7.4mm) to .750 (19.1mm)
  • Packaging:  Standard put ups include 100/250 foot (30/76 meter) boxes or customer specified lengths  (profile dependent)
  • Cutting: diagonal cutters

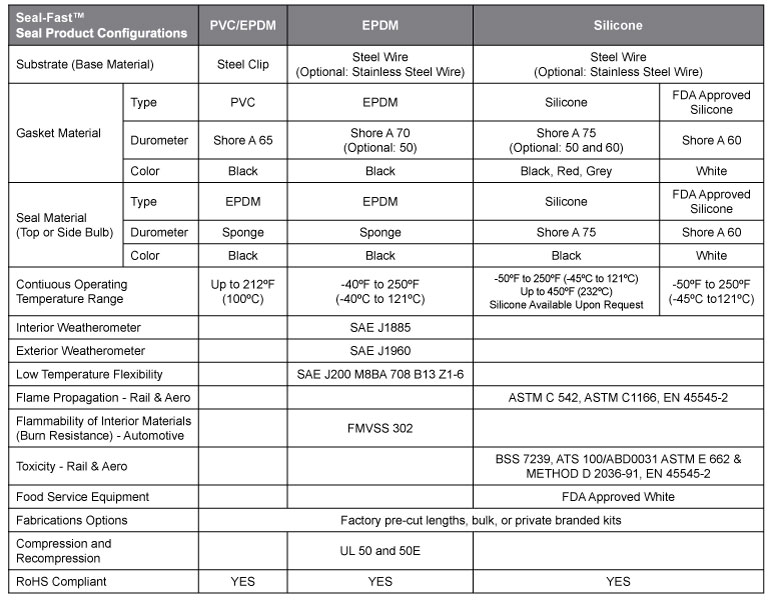

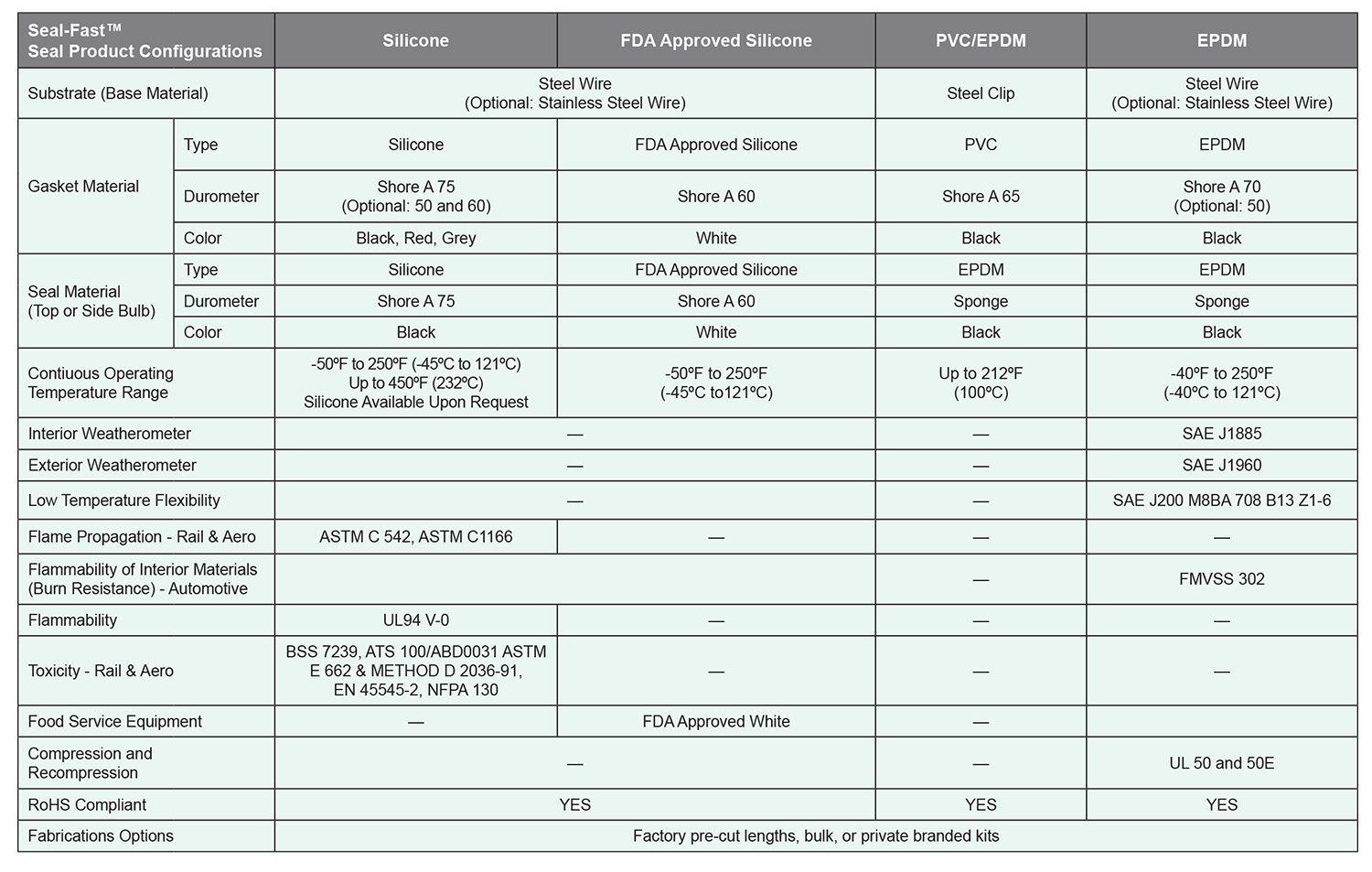

Specifications

“D” Silicone Series:

  • FDA approved (White Silicone Material)
  • ASTM E 662 (Toxicity)
  • ASTM C 542 & ASTM C 1166 (Flame Propagation)

“D” EPDM Series:

  • FMVSS 302 (Flammability of Interior Materials)
  • SAE J1885 (Interior Weatherometer)
  • SAE J1960 (Exterior Weatherometer)
  • SAE 200 M8BA 708 B13 21-6 (Low Temperature Flexibility)

“D” PVC / EPDM Series:

  • Greater flexibility for small corner radii
  • Smaller Profile
  • Lighter weight
