Wire Protection Grommet Edging
How Often Can You Cut One Component Cost in Half?
Spring-Fast Grommet Edging protects wires and cables from chafing and arcing with:
- Superior performance: encapsulated spring steel core outperforms plastic grommets.
- Snap on installation lowers costs 49% vs. grommets with glue. Watch the 4 min. video below.
- Improves efficiency 9.5x – due to fewer steps in workflow.
- 12 types of Spring-Fast from High Heat to Military Spec are available. Call for custom solutions.
- Snap on install lowers costs 49% vs. grommets with glue.
- Improves efficiency 9.5x – due to fewer steps in workflow.
- Nylon clad substrate assures high performance in normal or hostile environments.
- Flame retardant per UL94V-0 /
Vibration compliant to Telcordia GR63-CORE
- Helps prevent wires and cables from chafing.
- Fusion bonded nylon and a sacrificial polymer cushion for softer interface for cables.
- Greater gripping strength for severe shock and vibration.
- General aviation applications: avionics racks, fuselage/tail sections to lightening holes ribs, and other structures.
- Used on C4 Electronic systems, land based E-shelters, tactical equipment, and Dept. of Defense (DoD) missile systems.
- U.S. DoD and FAA approved per NASM 22529/1, NASM 22529/2.
- NSN per Federal Supply Code 5325.
- Outperforms nylon grommets like MS21266 and BACG20Z.

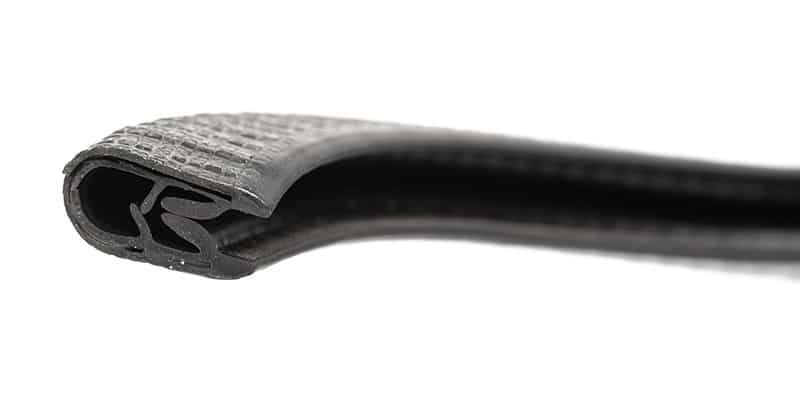

- Edge trim with fast and easy application and removal.
- Protects against rough panel edges in a variety of environments.
- Steel substrates encapsulated with silicone, EPDM, or PVC.
- Compliant with: FMVSS 302, UL94, FAR25, ASTM and FDA approvals.

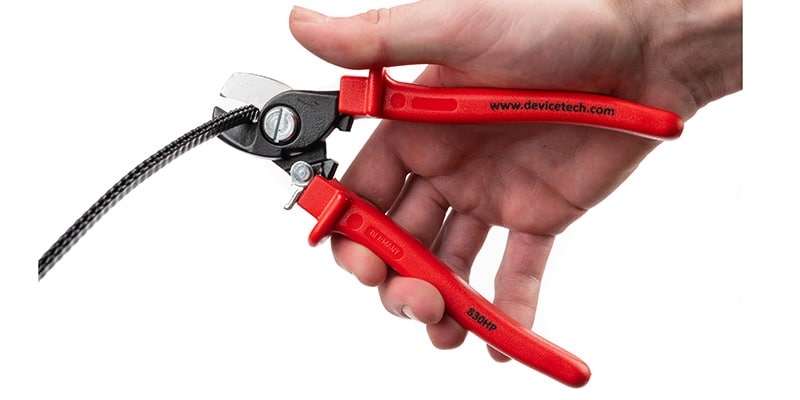

Tools to cut, measure and apply Spring-Fast and Trim-Fast™
Tools available: Installation roller, full by-pass shears, castle removal, measuring scale, go-no go sizing gauge, cutter cart.

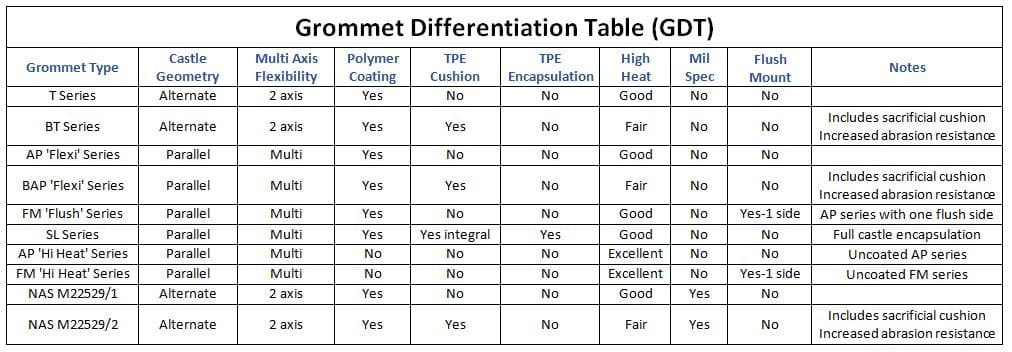

Grommet Differentiation Table (GDT)

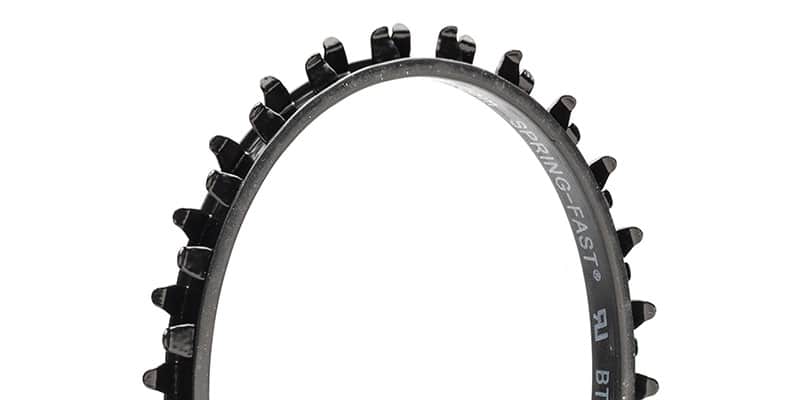

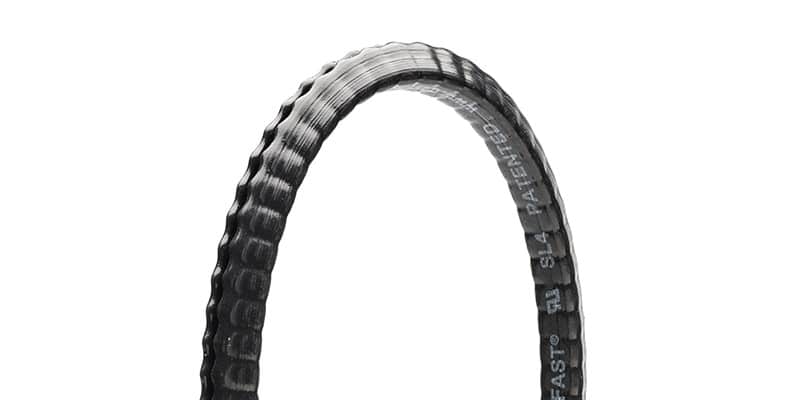

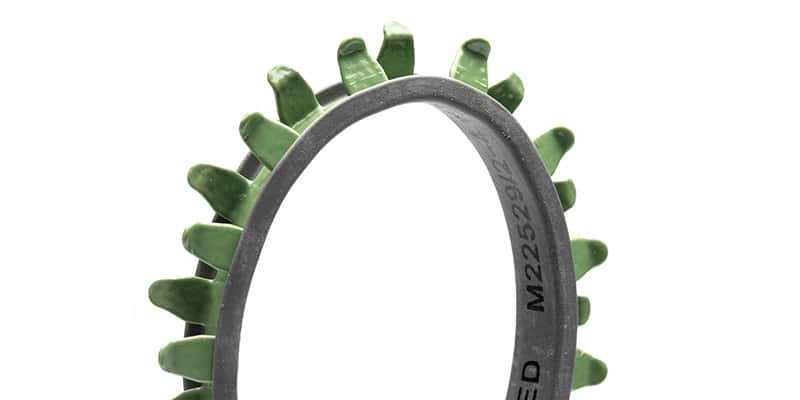

| Grommet Series | Castle Geometry | Flexibility | Polymer Coating | TPE Cushion | TPE Encapsulation | High Heat | Mil Spec | Flush Mount | Notes |
|---|---|---|---|---|---|---|---|---|---|
| T | Alternate | 2 axis | Yes | No | No | Good | No | No | |
| BT | Alternate | 2 axis | Yes | Yes * | No | Fair | No | No | |
| AP | Parallel | Multi axis | Yes | No | No | Good | No | No | |
| FM | Parallel | Multi axis | Yes | No | No | Good | No | 1 flat side | Flush |
| BAP | Parallel | Multi axis | Yes | Yes * | No | Fair | No | No | |
| SL | Parallel | Multi axis | Yes | Yes - integral | Yes | Good | No | No | |
| SL-FST | Parallel | Multi axis | Yes | Yes - integral | Yes | Good | No | No | EN 45545-2 compliant |
| NASM22529/1 | Alternate | 2 axis | Yes | No | No | Good | Yes | No | Mil-Spec |
| NASM22529/2 | Alternate | 2 axis | Yes | Yes * | No | Fair | Yes | No | Mil-Spec |
| High Heat (AP) | Parallel | Multi axis | No | No | No | Excellent | No | No | High Heat - uncoated AP |
| High Heat (FM) | Parallel | Multi axis | No | No | No | Excellent | No | 1 flat side | High Heat - uncoated FM |
| * Includes TPE sacrificial cushion for increased abrasion resistance. | |||||||||
Plastic Edging – Grommet Edging
The traditional names for these products vary, but to name a few: plastic grommets, plastic edge protection, flexible edging, rubber edging trim, rubber edge trim, wire grommets, caterpillar grommets, railroad track grommets, chicken track grommets, cable bushings, cable pass-throughs and cable grommets.
Cables or wires passing through or over sheet metal, rigid plastic or composite frames can suffer abrasion from sharp edges. This can break down the electrical insulation and cause a range of problems from data loss or complete lack of functionality to arcing and possibly catastrophic fires.
Traditionally, simple molded plastic edging grommets have been used to prevent this. The most common is the old MS21266 and/or BACG20Z in Nylon or PTFE. These have no retentive strength unto themselves with installation procedures requiring an adhesive application which is labor intensive, costly in time and has safety issues (VOC’s) due to the solvents and glues. Further, over time, the glue and nylon grommet will degrade, become embrittled and fall out. The Spring-Fast family of grommet edging outperforms the traditional nylon grommet strips and does it at a lower installed cost in a fraction of the time.
