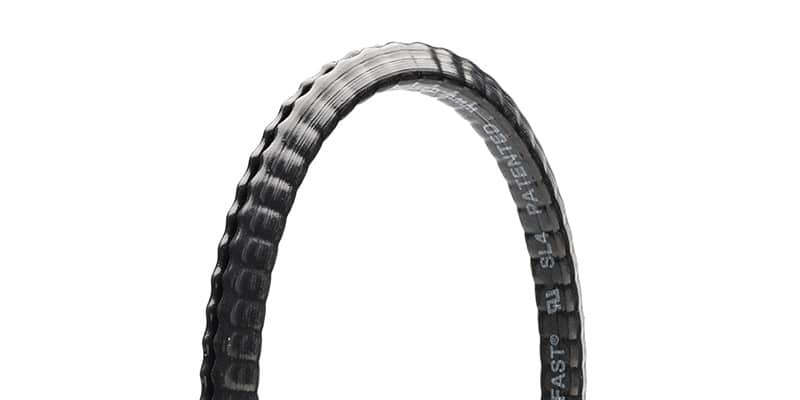

Spring-Fast Grommet Edging: SL Series
The SL Series has a steel substrate fully encapsulated in flexible, lubricious TPE
for superior abrasion and chemical resistance.
It has 4-axis flexibility and acts as a best in class grommet edge or a high performance edge trim.
Key Benefits
- Superior performance: encapsulated stainless steel core: outperforms plastic grommets.
- Snap on installation lowers costs 49% vs. grommets with glue. Watch the 4 min. video below.
- Improves efficiency 9.5x – due to fewer steps in workflow.
Grommet Differentiation Table (GDT)
| Grommet Series | Castle Geometry | Flexibility | Polymer Coating | Extra Cushion | 100% TPE Encapsulation | High Heat | Mil Spec | Application Method | Notes |
|---|---|---|---|---|---|---|---|---|---|
| SL | Opposing | Multi axis | Yes | No | Yes | 203°F/95°C | No | Snap on/No adhesive | No cure time delay |
| FOR REFERENCE | |||||||||
| MS21266 Nylon | Opposing | 2 axis | NA | Yes | NA | 257°F/125°C | Yes | Adhesive Required | 8-24hr cure time delay |
| MS21266 Teflon | Opposing | 2 axis | NA | Yes | NA | 527°F/275°C | Yes | Adhesive Required | 8-24hr cure time delay |
Applications
- Used in high performance applications: aircraft structures/interiors, avionics systems,
military vehicles, NASCAR vehicles, supercomputers, medical equipment and rail transit - Straight, roll formed and flanged edges
- Multi axis flexibility for flanged holes and small radii inside or outside corners
- High performance edge trim
Features
The old nylon grommet with glue is old, inefficient and costly. DTi has a better way.
- 100% TPE encapsulated stainless steel substrate
- Snaps on fast with finger pressure
- Installs continuously with multi axis conformity
- Self locking with strong retention with no adhesives
- Simpler install: no adhesive, fixturing, curing, clean up or OSHA concerns
- Maintenance is far easier due to its ease of application, use and removal
- Customization available (lengths, colors and print)
Key Specifications
- Resistant to hydrocarbons, immersion, salt spray, shock and vibration
- Operating Temperature Heat continuous to -67°F to 203°F (-55°C to 95°C)
- UL94 V-0 Flammability Rating
- RoHS and DFARS Compliant
- High gripping strength, corrosion resistance and dielectric strength
- High Shock and Vibration Resistance to rms G 41.7
- 7 sizes to fit edge thicknesses: 0.02” to 0.145” (0.5 mm to 3.7 mm)
- Available in custom cut lengths & factory pre-cut reels of 25 ft. (7.6 m), 100 ft. (30.5 m) or 500 ft. (152 m)
- Tools available: Installation roller, full by-pass shears, castle removal, measuring scale,
- go-no go sizing gauge, cutter cart
Spring-Fast SL Series Specifications and Ordering Options:
