Edge Trim

Trim-Fast™: Overview

Launch Product Gallery [ + ]

Trim-Fast™ Features

• Edge Trim Panel thickness range: .029 (7.4mm) to .750 (19.1mm)

• Excellent grip strength

• Excellent resistance to abrasion, water absorption, and low and high temperatures

• Indoor or outdoor use edge protection

• Fast assembly without the use of adhesives, rivets or screws

• Multi-axis flexibility for small inside and outside radius corners

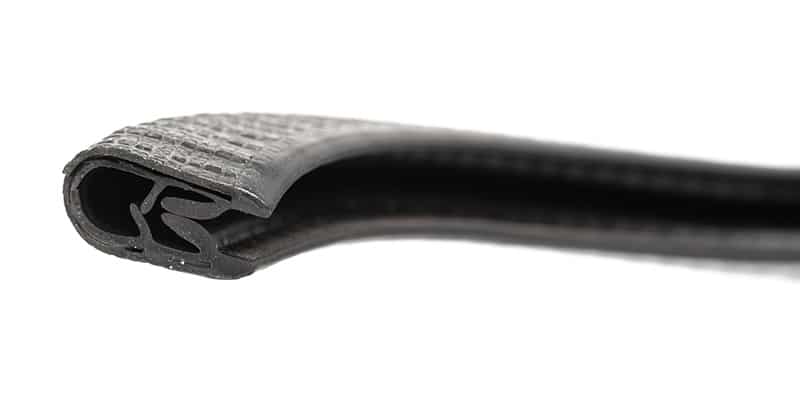

Trim-Fast™ Edge Trim

A better, cleaner and faster way to protect your critical equipment from wire and cable abrasion.

The Trim-Fast™ Edge Trim is available in a variety of materials, which include a flexible steel or stainless steel substrate encapsulated with a Silicone, EPDM or PVC extrusion for fast and easy assembly.

  • Panel thickness range: .029 (7.4mm) to .750 (19.1mm)
  • Excellent grip strength
  • Excellent resistance to abrasion, water absorption, and low and high temperatures
  • Indoor or outdoor use
  • Fast assembly without the use of adhesives, rivets or screws
  • Multi-axis flexibility for small inside and outside radius corners

Edge Trim Applications:

  • Automotive
  • Railway and Aerospace
  • Food Service (FDA White)
  • Telecommunication
  • Construction, Mining and Forestry
  • Boating
  • Golf Carts
  • Helmets

"S" Silicone Series

  • FDA approved (White Silicone Material)
  • ASTM E 662 (Toxicity)
  • ASTM C 542 & ASTM C 1166 (Flame Propagation)

"S" EPDM Series

  • FMVSS 302 (Flammability of Interior Materials)
  • SAE J1885 (Interior Weatherometer)
  • SAE J1960 (Exterior Weatherometer)
  • SAE 200 M8BA 708 B13 21-6 (Low Temperature Flexibility)

"S" PVC / EPDM Series

  • Greater flexibility for small corner radii
  • Smaller Profile

Packaging:

  • 100 foot box, or customer specified length

Cutting:

  • Diagonal cutters
