Spring-Fast Grommet Edging: FM Series
The FM Series has the lowest profile of any wire protection grommet edging available
and it provides a near flush surface on one side of the mounted chassis.
The steel substrate encapsulated with lubricious fusion bonded nylon gives fast snap-on superior abrasion
and chemical resistance, enhanced gripping strength for severe shock/vibration, multi axis flexibility.
Key Benefits
- Superior performance: encapsulated stainless steel core: outperforms plastic grommets.
- Snap on installation lowers costs 49% vs. grommets with glue. Watch the 4 min. video below.
- Improves efficiency 9.5x – due to fewer steps in workflow.

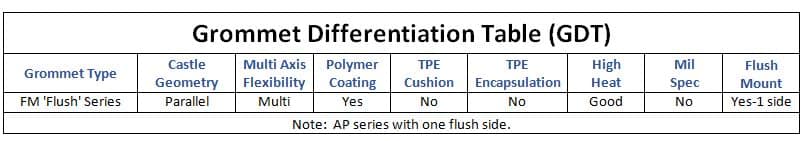

Grommet Differentiation Table (GDT)
| Grommet Series | Castle Geometry | Flexibility | Polymer Coating | Extra Cushion | 100% TPE Encapsulation | High Heat | Mil Spec | Application Method | Notes |
|---|---|---|---|---|---|---|---|---|---|
| FM | Opposing | Multi axis | Yes | No | No | 285°F/140°C | No | Snap on/No adhesive | 1 side flush No cure time delay |
| FOR REFERENCE | |||||||||
| MS21266 Nylon | Opposing | 2 axis | NA | Yes | NA | 257°F/125°C | Yes | Adhesive Required | 8-24hr cure time delay |
| MS21266 Teflon | Opposing | 2 axis | NA | Yes | NA | 527°F/275°C | Yes | Adhesive Required | 8-24hr cure time delay |
Applications
- Commercial use when superior grip strength and retention is important – plus flush mount capability
- Straight and roll formed edges
- Small radii inside or outside corners
Features
The old nylon grommet with glue is old, inefficient and costly. DTi has a better way.
- Nylon encapsulated stainless steel substrate
- Snaps on fast with finger pressure
- Installs continuously with multi axis conformity
- Self locking with strong retention – no adhesives
- Simpler install: no adhesive, fixturing, curing, clean up or OSHA concerns
- Maintenance is far easier due to its ease of application, use and removal
- Customization available (lengths, colors and print)

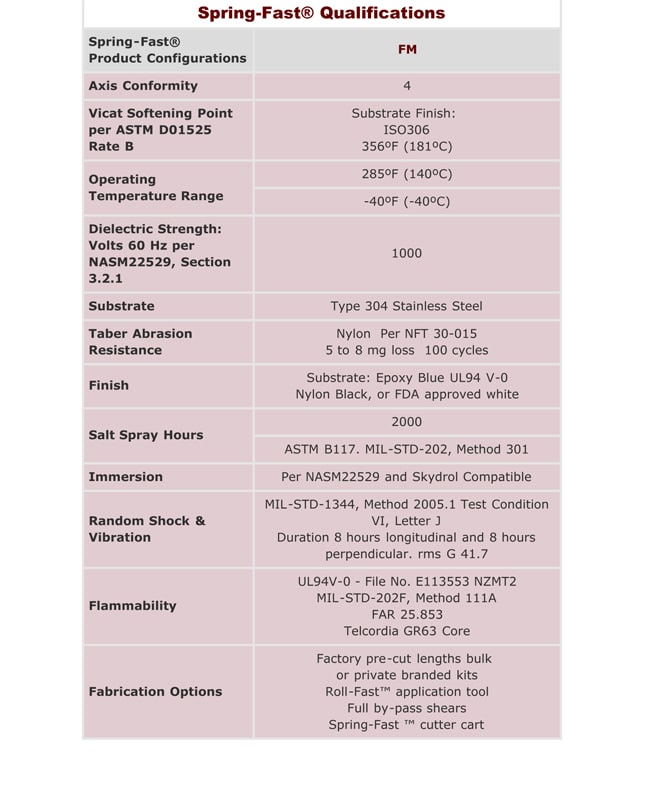

Key Specifications
- Resistant to hydrocarbons, immersion, salt spray, shock and vibration.
- Operating Temperature Heat Continuous to -40°F to 285°F (-40°C to 140°C)
- UL94 V-0 Flammability Rating
- High Shock and Vibration Resistance to rms G 41.7
- 3 sizes to fit edge thickness: 0.044” to 0.090” (1.1 mm to 2.3 mm)
- Available in custom cut lengths & factory pre-cut reels of 25 ft. (7.6 m), 100 ft. (30.5 m) or 500 ft. (152 m)
- Tools available: Installation roller, full by-pass shears, castle removal, measuring scale,
- go-no go sizing gauge, cutter cart
Spring-Fast® Sizes – FM Series:
| Product Size | T Sheet Thickness inches (mm) | WIDTH ("W") |
|---|---|---|
| 2 | .044 - .056 (1.1 - 1.4) | 0.14 (3.6) |
| 3 | .055 - .069 (1.4 - 1.7) | |
| 4 | .069 - .090 (1.7 - 2.3) |
