Spring-Fast® Grommet Edging: The "T" Series
Device Technologies Free Sample Kit

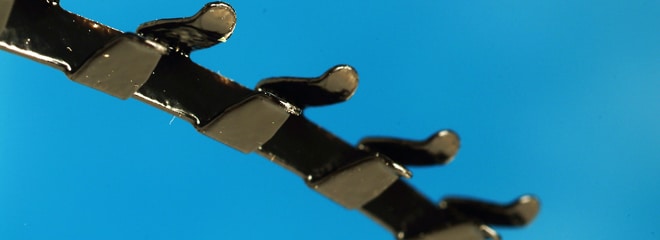

  Spring-Fast Grommet Edging:  T Series

The T Series has the lowest profile of any wire protection grommet edging available.
A steel substrate encapsulated with lubricious fusion bonded nylon gives superior abrasion and chemical resistance.

Key Benefits

  • Superior performance: encapsulated stainless steel core: outperforms plastic grommets.
  • Snap on installation lowers costs 49% vs. grommets with glue.  Watch the 4 min. video below.
  • Improves efficiency 9.5x – due to fewer steps in workflow.

Applications

  • General commercial use to prevent abrasion
  • Straight edges
  • Small radii inside or outside corners

Features

The old nylon grommet with glue is old, inefficient and costly.  DTi has a better way.

  • Nylon encapsulated stainless steel substrate
  • Snaps on fast with finger pressure
  • Installs continuously with two axis conformity, including right angled corners
  • Self locking with strong retention – no adhesives
  • Simpler install: no adhesive, fixturing, curing, clean up or OSHA concerns
  • Maintenance is far easier due to its ease of application, use and removal
  • Customization available (lengths, colors and print)

Key Specifications (download spec sheet below)

  • Resistant to hydrocarbons, immersion, salt spray, shock and vibration
  • Operating Temperature Heat continuous to -40°F to 285°F (-40°C to 140°C)
  • UL94 V-0 Flammability Rating
  • High Shock and Vibration Resistance to rms G 41.7
  • 9 sizes to fit edge thicknesses: 0.02” to 0.26” (0.5 mm to 6.6 mm)
  • Factory discrete cut lengths and reels: 25 ft. (7.8 m), 100 ft. (30.5 m), 500 ft. (150 m)
  • Tools available: Installation roller, full by-pass shears, castle removal, measuring scale,
    go-no go sizing gauge, cutter cart
