Protect-Fast: Shield Expander

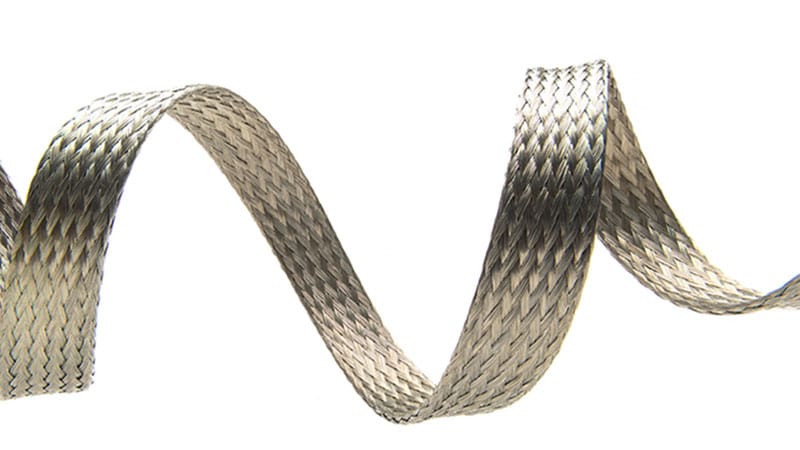

Wiring Sleeve Expander

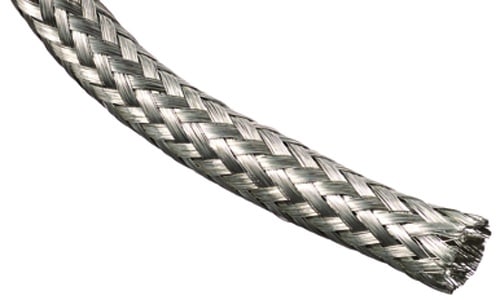

Wiring Sleeve Expander in Use
Protect-Fast Shield Expander provides excellent flexibility and abrasion resistance, as well as EMI Shielding protection for wire and cable organizing within a variety of applications including telecommunications, automotive, and data centers. Its open woven structure expands to 3 times its initial resting diameter
Protect-Fast Features
- Superior flexibility
- Excellent abrasion resistance
- Wire and cable organizing
- Material: Tin (Sn) plated Copper (Cu) braid
- Melt Temperature Rating : 449° F (232° C )
- Expands to 3x initial diameter- Elongation: 20%
- RoHS Compliant and Halogen free
Protect-Fast Applications
- Telecommunications
- Transportation
- Automotive
- Heating applications
- Data Centers
- Generators
| Shield Expander | |
|---|---|
| Material | Tin (Sn) plated Copper (Cu) braid |
| Service Temperature °C | -70° ~ 125° |
| Melt Temperature Rating | 449° F (232° C ) |
| Surface Resistivity (Ω/sq.) | 0.02 |
| Flammability | Non-Flammable |
| Nominal Size | Part Number | Expansion Range | Shop Spool Info Put Up/Feet | Bulk Spool Put Up/Feet |
|
|---|---|---|---|---|---|
| Min | Max | ||||
| 1/8" | A0FR | 1/16" | 1/4" | 164 | 328 |
| 3/8" | A2FR | 1/4" | 1/2" | 164 | 328 |
| 1/2" | A3FR | 3/8" | 3/4" | 164 | 328 |
| 3/4" | A4FR | 1/2" | 1" | 164 | 328 |
| 1" | A5FR | 3/4" | 1 1/4" | 164 | 328 |
| 1 1/4" | A7FR | 1" | 1 1/2" | 164 | 328 |
| 1 1/2" | A7FR | 1 1/4" | 1 3/4" | 164 | 328 |
