Spring-Fast® Grommet Edging: The "AP" Series

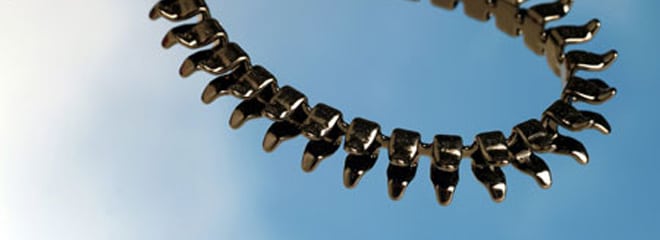

The AP Series has a steel substrate for optimized fastening and is encapsulated with lubricious
fusion bonded nylon for superior abrasion and chemical resistance.  Its paired, parallel castles provide
enhanced gripping strength for severe shock and vibration environments and 4-axis flexibility.

Key Benefits

  • Superior performance: encapsulated stainless steel core: outperforms plastic grommets.
  • Snap on installation lowers costs 49% vs. grommets with glue.  Watch the 4 min. video below.
  • Improves efficiency 9.5x – due to fewer steps in workflow.

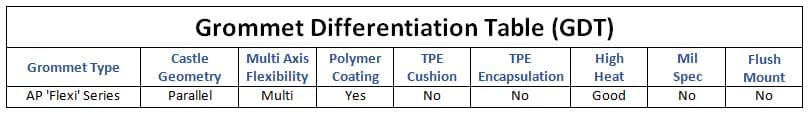

Grommet Differentiation Table (GDT)

Grommet SeriesCastle GeometryFlexibilityPolymer CoatingExtra Cushion100% TPE EncapsulationHigh HeatMil SpecApplication MethodNotes
AP OpposingMulti axisYesNoNo285°F/140°CNoSnap on/No adhesiveNo cure time delay
FOR REFERENCE
MS21266 Nylon Opposing2 axisNAYes NA257°F/125°CYesAdhesive Required8-24hr cure time delay
MS21266 Teflon Opposing2 axisNAYes NA527°F/275°CYesAdhesive Required8-24hr cure time delay

Applications

  • Commercial use when low profile clearance, superior grip strength and retention are important factors
  • Straight roll formed and multi-axial edges
  • Small radii inside or outside corners

Features

The old nylon grommet with glue is old, inefficient and costly.  DTi has a better way.

  • Nylon encapsulated stainless steel substrate
  • Snaps on fast with finger pressure
  • Installs continuously with multi axis conformity
  • Self locking with strong retention – no adhesives
  • Simpler install: no adhesive, fixturing, curing, clean up or OSHA concerns
  • Maintenance is far easier due to its ease of application, use and removal
  • Customization available (lengths, colors and print)

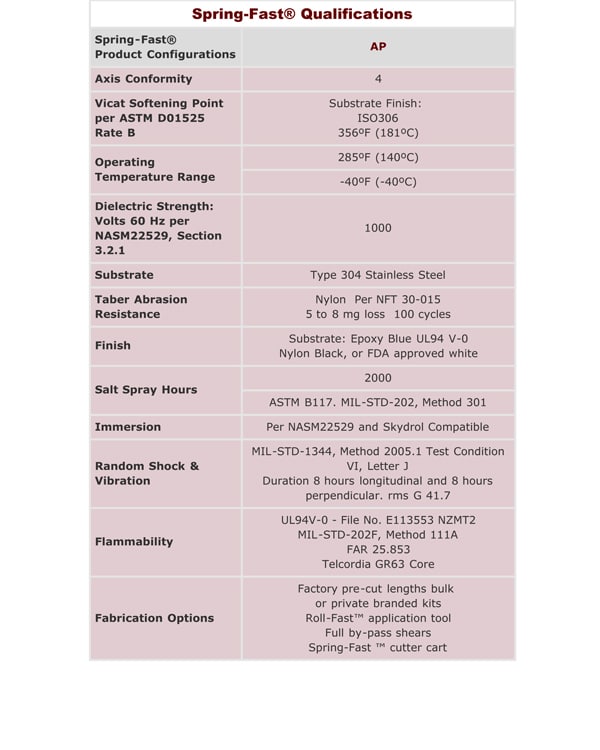

Key Specifications

  • Resistant to hydrocarbons, immersion, salt spray, shock and vibration
  • Operating Temperature Heat continuous to -40°F to 285°F (-40°C to 140°C)
  • UL94 V-0 Flammability Rating
  • High Shock and Vibration Resistance to rms G 41.7

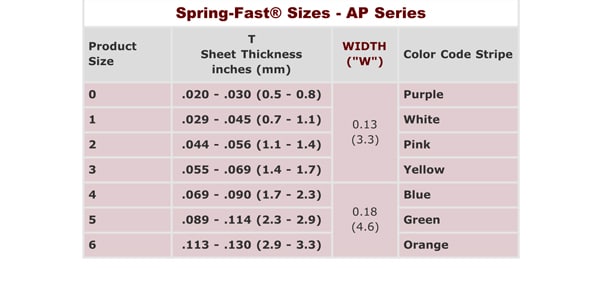

  • 7 sizes to fit edge thicknesses: 0.02” to 0.26” (0.5 mm to 6.6 mm)
  • Available in custom cut lengths & factory pre-cut reels of 25 ft. (7.6 m), 100 ft. (30.5 m) or 500 ft. (152 m)
  • Tools available: Installation roller, full by-pass shears, castle removal, measuring scale,
    go-no go sizing gauge, cutter cart
